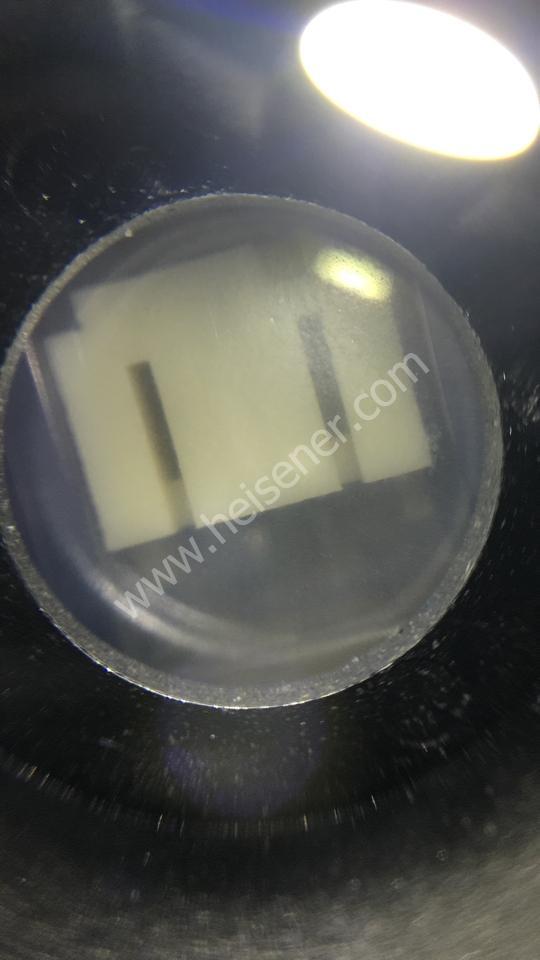

Name: S2B-PH-SM4-TB(LF)(SN)
Brand: JST Sales America Inc.
SKU: S2B-PH-SM4-TB-LF-SN
Availability: InStock
Rating: 5 (87 reviews)

S2B-PH-SM4-TB(LF)(SN)

仅供参考

零件编号	S2B-PH-SM4-TB(LF)(SN)
制造商	JST Sales America Inc.
描述	CONN HEADER PH SIDE 2POS 2MM SMD
数据表	S2B-PH-SM4-TB(LF)(SN) 数据表
封装	-
ECAD
库存	5,904 piece(s)
单价	Request a Quote
交货时间	可立即发货
预计送达时间	十一月 7 - 十一月 12 (选择速递服务)
请求报价

支付方式
送货服务

我们提供的 S2B-PH-SM4-TB(LF)(SN) 具有全球市场竞争力的价格，如有需要请发送询价单给我们。谢谢！
添加 S2B-PH-SM4-TB(LF)(SN) 及其数量至BOM以便提交您的报价请求。 Heisener.com 无需注册便可以提交 S2B-PH-SM4-TB(LF)(SN) 的报价请求。

S2B-PH-SM4-TB(LF)(SN)参数

制造商	JST Sales America Inc.
类别	连接器，互连器件 - 矩形连接器 - 针座，公插针
封装	-
ECAD
系列	PH
连接器类型	Header
联系方式	Male Pin
间距 - 交配	0.079" (2.00mm)
样式	Board to Cable/Wire
遮罩	Shrouded - 4 Wall
职位数	2
已加载的位置数	All
行数	1
行间距 - 交配	-
安装类型	Surface Mount, Right Angle
终止	Solder
紧固类型	Detent Lock
接触长度 - 交配	0.130" (3.30mm)
接触长度 - 发布	-
总接触长度	-
绝缘高度	0.217" (5.51mm)
接触形状	Square
联系完成 - 交配	Tin
接触表面厚度 - 交配	-
联系完成 - 发布	Tin
联系材料	Copper Alloy
绝缘材料	Polyamide (PA6T), Nylon 6T
特征	Solder Retention
工作温度	-25°C ~ 85°C
入侵保护	-
材料可燃性等级	UL94 V-0
绝缘颜色	Natural

S2B-PH-SM4-TB(LF)(SN)数据表

S2B-PH-SM4-TB(LF)(SN) Packaging

S2B-PH-SM4-TB(LF)(SN) FAQ

1. How to order S2B-PH-SM4-TB(LF)(SN) on Heisener?

Currently, Heisener only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does Heisener guarantee that S2B-PH-SM4-TB(LF)(SN) is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the S2B-PH-SM4-TB(LF)(SN). All suppliers must pass our qualification reviews before they can publish their products including S2B-PH-SM4-TB(LF)(SN) on Heisener; we pay more attention to the channels and quality of S2B-PH-SM4-TB(LF)(SN) products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the S2B-PH-SM4-TB(LF)(SN) price and inventory displayed accurate?

The price and inventory of S2B-PH-SM4-TB(LF)(SN) fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of S2B-PH-SM4-TB(LF)(SN)?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the S2B-PH-SM4-TB(LF)(SN) we delivered, we will accept the replacement or return of the S2B-PH-SM4-TB(LF)(SN) only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of S2B-PH-SM4-TB(LF)(SN).

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as S2B-PH-SM4-TB(LF)(SN) pin diagram, S2B-PH-SM4-TB(LF)(SN) datasheet?

If you need any after-sales service, please do not hesitate to contact us.
