Name: S02B-XASS-1
Brand: JST Sales America Inc.
SKU: S02B-XASS-1
Availability: InStock
Rating: 5 (69 reviews)

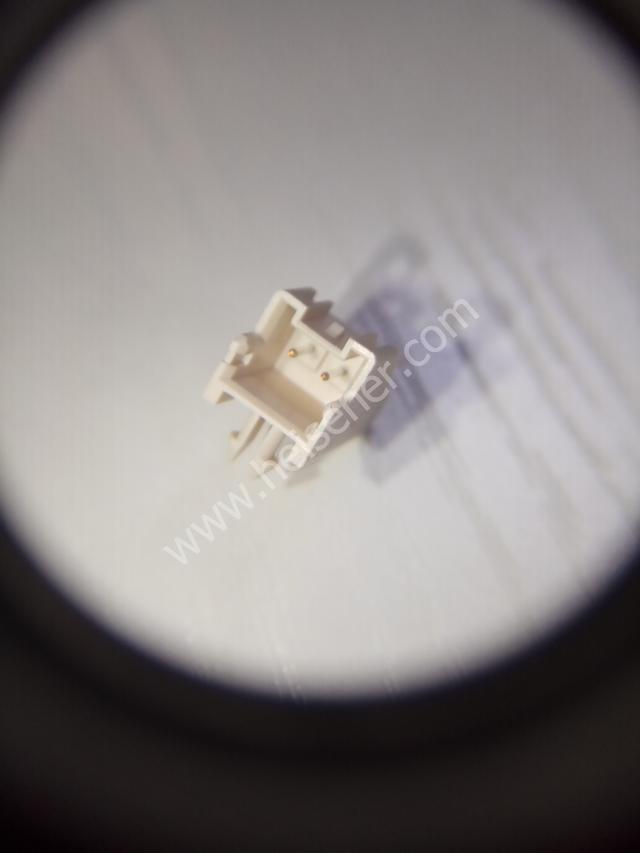

S02B-XASS-1

仅供参考

零件编号	S02B-XASS-1
制造商	JST Sales America Inc.
描述	CONN HEADER XA 2PS 2.5MM TIN T/H
数据表	S02B-XASS-1 数据表
封装	-
ECAD
库存	2,898 piece(s)
单价	Request a Quote
交货时间	待确认
预计送达时间	十一月 1 - 十一月 6 (选择速递服务)
请求报价

支付方式
送货服务

我们提供的 S02B-XASS-1 具有全球市场竞争力的价格，如有需要请发送询价单给我们。谢谢！
添加 S02B-XASS-1 及其数量至BOM以便提交您的报价请求。 Heisener.com 无需注册便可以提交 S02B-XASS-1 的报价请求。

S02B-XASS-1参数

制造商	JST Sales America Inc.
类别	连接器，互连器件 - 矩形连接器 - 针座，公插针
封装	-
ECAD
系列	XA
连接器类型	Header
联系方式	Male Pin
间距 - 交配	0.098" (2.50mm)
样式	Board to Cable/Wire
遮罩	Shrouded - 4 Wall
职位数	2
已加载的位置数	All
行数	1
行间距 - 交配	-
安装类型	Through Hole, Right Angle
终止	Kinked Pin, Solder
紧固类型	Locking Ramp
接触长度 - 交配	-
接触长度 - 发布	0.126" (3.20mm)
总接触长度	-
绝缘高度	0.299" (7.60mm)
接触形状	Circular
联系完成 - 交配	Tin-Lead
接触表面厚度 - 交配	-
联系完成 - 发布	Tin-Lead
联系材料	Copper Alloy
绝缘材料	Polyamide (PA66), Nylon 6/6, Glass Filled
特征	Board Lock
工作温度	-25°C ~ 85°C
入侵保护	-
材料可燃性等级	UL94 V-0
绝缘颜色	Natural

S02B-XASS-1数据表

S02B-XASS-1 Packaging

S02B-XASS-1 FAQ

1. How to order S02B-XASS-1 on Heisener?

Currently, Heisener only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does Heisener guarantee that S02B-XASS-1 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the S02B-XASS-1. All suppliers must pass our qualification reviews before they can publish their products including S02B-XASS-1 on Heisener; we pay more attention to the channels and quality of S02B-XASS-1 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the S02B-XASS-1 price and inventory displayed accurate?

The price and inventory of S02B-XASS-1 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of S02B-XASS-1?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the S02B-XASS-1 we delivered, we will accept the replacement or return of the S02B-XASS-1 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of S02B-XASS-1.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as S02B-XASS-1 pin diagram, S02B-XASS-1 datasheet?

If you need any after-sales service, please do not hesitate to contact us.
