Name: DF14H-20P-1.25H(56)
Brand: Hirose Electric Co Ltd
SKU: DF14H-20P-1-25H-56
Availability: InStock
Rating: 5 (117 reviews)

DF14H-20P-1.25H(56)

仅供参考

零件编号	DF14H-20P-1.25H(56)
制造商	Hirose Electric Co Ltd
描述	CONN HDR 20POS
数据表
封装	-
ECAD
库存	6,624 piece(s)
单价	Request a Quote
交货时间	待确认
预计送达时间	十一月 17 - 十一月 22 (选择速递服务)
请求报价

支付方式
送货服务

我们提供的 DF14H-20P-1.25H(56) 具有全球市场竞争力的价格，如有需要请发送询价单给我们。谢谢！
添加 DF14H-20P-1.25H(56) 及其数量至BOM以便提交您的报价请求。 Heisener.com 无需注册便可以提交 DF14H-20P-1.25H(56) 的报价请求。

DF14H-20P-1.25H(56)参数

制造商	Hirose Electric Co Ltd
类别	连接器，互连器件 - 矩形连接器 - 针座，公插针
封装	-
ECAD
系列	DF14
连接器类型	Header
联系方式	Male Pin
间距 - 交配	0.049" (1.25mm)
样式	Board to Cable/Wire
遮罩	Shrouded - 4 Wall
职位数	20
已加载的位置数	All
行数	1
行间距 - 交配	-
安装类型	Board Edge, Cutout; Surface Mount, Right Angle
终止	Solder
紧固类型	Push-Pull
接触长度 - 交配	0.086" (2.20mm)
接触长度 - 发布	-
总接触长度	-
绝缘高度	0.094" (2.40mm)
接触形状	Square
联系完成 - 交配	Gold
接触表面厚度 - 交配	3.9µin (0.10µm)
联系完成 - 发布	-
联系材料	Brass
绝缘材料	Polyamide (PA), Nylon
特征	Solder Retention
工作温度	-35°C ~ 85°C
入侵保护	-
材料可燃性等级	UL94 V-0
绝缘颜色	Beige

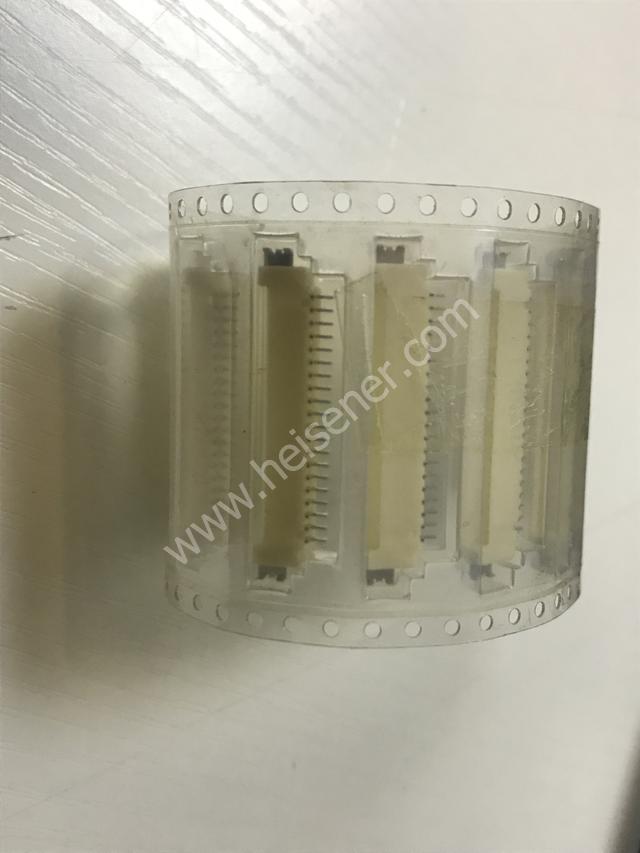

DF14H-20P-1.25H(56) Packaging
